HIT Double 190

What are Photovoltaics?

In Photovoltaics, the sun's radiation energy is transformed into electric energy. This is accomplished by means of solar cells. As a rule, solar cells consist of the semiconductor silicon, which is particularly suitable for the manufacture of solar cells because of its high availability, low raw material costs and simple transformation. Semiconductors are substances that become electrically conductive when they are exposed to light or heat. Solar cells are essentially structured into two layers, where one layer is negatively charged and the other holds a positive charge. As soon as sunlight strikes the layers, a voltage tension develops between the two layers. This generates direct current within the solar cell. In order to be able to use this current, photovoltaic systems have a power inverter or AC converter. The inverter converts the direct current generated by the cells into alternating current, which can then be used for household purposes or to be fed into the public electricity grid.





Technical information: >>>  DOWNLOAD  (pdf.)

Frequently Asked Questions: >>> DOWNLOAD  (pdf.)






High Temperature Performance

As temperatures rise, HIT Double solar panels produce more electricity
than conventional solar panels at the same temperature, for good
performance in high temperature sites.

High Efficiency

HIT® Double bifacial solar panels are World leaders in sunlight conversion efficiency, helping customers to enjoy the maximum power per square foot from available space.

Power Guarantee

SANYO guarantees customers will receive 100% of the panel’s rated power (or more) at the time of purchase, enabling owners to generate more kWh per rated watt.

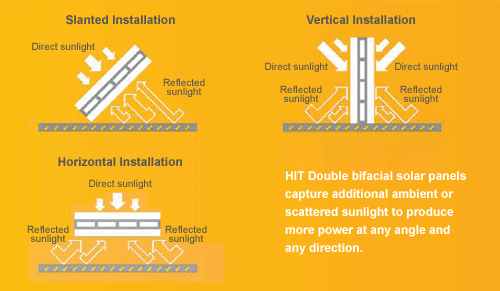

Bifacial Effect

The back face of a HIT Double panel generates electricity from ambient light reflected off surrounding surfaces, and combines with power from the front face of the panel. Depending upon system design and site albedo, this results in up to 30% higher power generation (more kWh) per square foot.

Application Possibilities

Architectural, Awnings, Balconies, Bus Shelters, Walkway Covers, Deck & Porch Coverings, Canopies, Carports, Trellises, Fences, Facades, Siding, Trellises, Tracking Systems, BIPV, Ground Mount, Roof Mount, Skylights, and More!

Proprietary Technology

HIT bifacial solar cells are hybrids of single crystalline silicon surrounded by ultra-thin amorphous silicon layers, available solely from SANYO.

High Temperature Performance

As temperatures rise, HIT Double solar panels produce more electricity than conventional solar panels at the same temperature, due to their low temperature coefficient.

Quality Products

SANYO silicon wafers are made in California and in Oregon USA, and assembled in Mexico at SANYO’s certified factory. ISO 9001 (quality), 14001 (environment), and 18001 (safety).

Valuable Features

HIT Double panels operate silently and have no moving parts. A double glass structure allows some sunlight to penetrate portions of the panel, creating brilliant light and shadows for aesthetic and architectural applications. HIT Double panels are perfect for areas with performance-based incentives and tradable energy credits.

Additional Information

  • trademark:  "SANYO"  / Japan /
certificates:


D No. 0000022408:
SANYO
