Solar Module "Samsung"










Physical characteristics:
 Cells per module  60
 Cell type   Mono-crystalline silicon

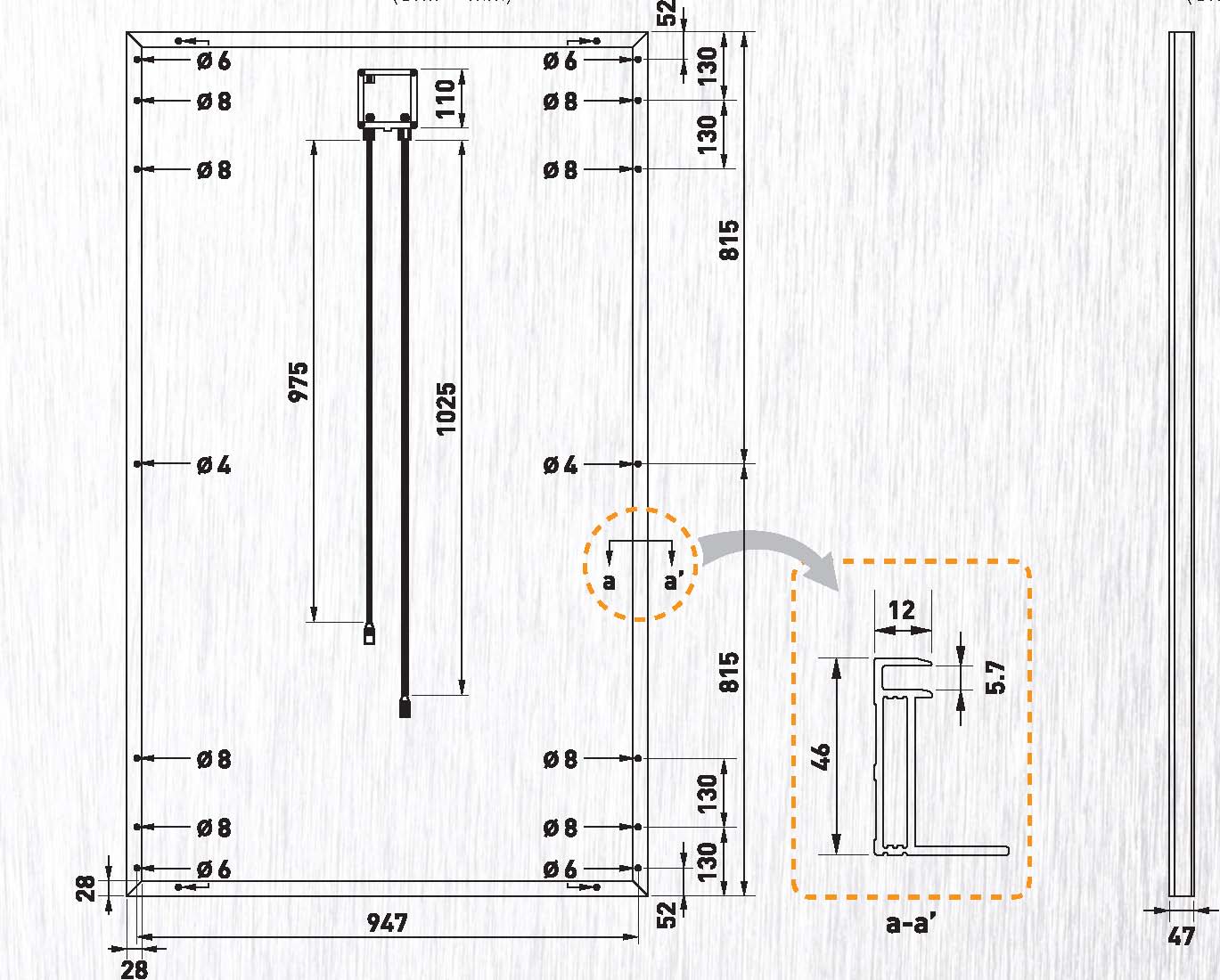

 Module dimensions   1630 x 982 x 47 mm
 Module weight   18,6 kg
 Junction box   IP65
 Frame   Anodized Aluminum
 Front Glass   3,2 mm Tempered glass
 Output Cable   (-)975 mm, (+)1025 mmKitani Standard(KTN-PVC1P-S)

Safety Ratings & Warranties:

 Fire Safety Classification   Class C
 Certifications   UL 1703, CEC, IEC61215, IEC61730
 Warranty   5 years limited product warranty
 Performance guarantee   10 years limited warranty of 90% power output
25 years limited warranty of 80% power output


Qualification Test:

 Temp cycling range   -40 °C to 85 °C for 200 cycles
 Damp heat test   85 °C and 85% relative humidity for 1000 hr
 Front load test (Snow)   5400 Pa
 Rear static load test(Wind)   2400 Pa
 Hailstone impact test   25 mm hail at 23 m/s from 1 m distance





LPC235SM

LPC238SM

LPC241SM

LPC244SM

LPC247SM

LPC250SM

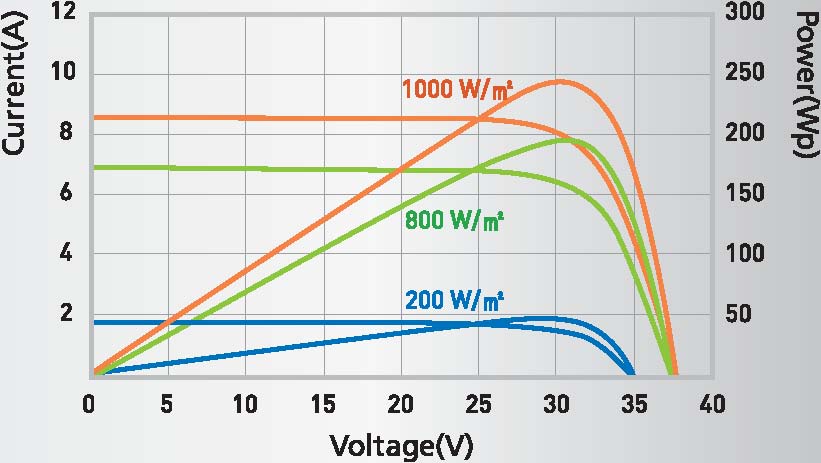

Performance at Standard Test Conditions (STC) : Irradiance 1000 W/m2, AM 1.5, and cell temperature 25 °C

Maximum power

Pmax (Wp)

235

238

241

244

247

250

Maximum power voltage

Vmp (V)

29.9

30.0

30.1

30.3

30.4

30.5

Maximum power current

Imp (A)

7.88

7.94

8.01

8.07

8.14

8.20

Open circuit voltage

Voc (V)

37.2

37.3

37.4

37.5

37.6

37.6

Short circuit current

Isc (A)

8.47

8.51

8.54

8.58

8.62

8.66

Module efficiency

14.68%

14.87%

15.06%

15.24%

15.43%

15.62%

Performance at Nominal Operating Cell Temperature (NOCT) : Irradiance 800 W/m2, AM 1.5

Maximum power

Pmax (Wp)

188

190

194

196

198

200

Maximum power voltage

Vmp (V)

30.4

30.2

30.3

30.4

30.5

30.9

Maximum power current

Imp (A)

6.21

6.31

6.43

6.48

6.49

6.51

Open circuit voltage

Voc (V)

37.2

37.3

37.4

37.3

37.4

37.6

Short circuit current

Isc (A)

6.65

6.66

6.84

6.88

6.89

6.90

The rated power may only vary by 0 Wp / +2.99 Wp and all other electrical parameters by ±3%



Additional Information

  • manufacturer:   "Samsung" / South Korea /
