Split Solar Water Heater

Tank Materials:
Inner tank: SUS 304
Inner tank materials: 1.2mm
Outer tank:colored steel
Outer tank thickness:0.37mm
Insulation: Polyurethane
Insulation thickness: 50-65mm
Heat exchanger: copper coil
Frame: steel coated with the zince
Frame thickness: 1.5mm
Advantage: Get the instant and healthy hot water at any time.
Pressure operation.


RTSH58/1800
Manifold:copper
Outer connectors:aluminium alloy or stainless steel SUS304
Conducting: heat pipe.


RTSU58/1800
Manifold:copper
Outer connectors:aluminium alloy or stainless steel SUS304
Conducting: U tube.

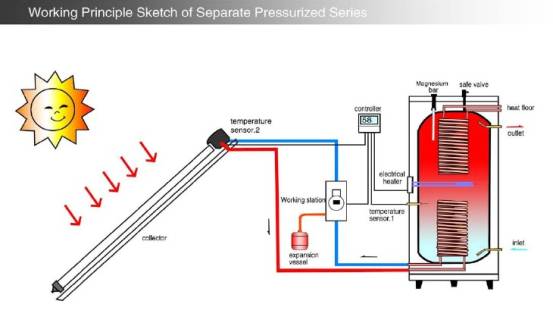

Whole system working theory:

SPLIT SYSTEM CHARACTERS:


1. Perfect design
Split solar heater are designed as flat collectors which is available to be integrated into the roof to become the perfect designation.

2. Pressure hot water
The whole system adopt the pressure endured system, which can provide more strong hot water for the comfortable bathing.

3.Working stability
For the solar heater collectors, it use the heat pipe which conducting the heat energy. Even if one glass tube broken, the whole system can work steadily to provide the hot water.

4. computerized control
The control system is necessary for the split system working. All the automatic function can be controlled by the control system such as the water in, water out, water temperature show, high pressure release, automatic circulation, water temperature control and so on. This system realized the realistic automatization. The computerized control avoid the manual operation.

5. Diversification of installation
For the installation ,there is more choice, which can be fitted on the balcony,on roof,on floor or other choices. The installation avoid the traditional roof installation for the thermal model.

6. Separate type installation.
The heat pipe solar collectors are separated with the tank. The heat pipe collectors are on the roves and the pressure tank is in the house. The connection pipe is short ,which can provide the hot water quickly.

7. available work with the back up power
The split solar system can work with the back up power such as the gas, electric heater together,which realize the hot water supply in the cloudy days.

8. Sufficient pressure hot water For the system are pressure endured, more bath clock can get the strong hot water.

9.Easy installation.
The system are simple installation.

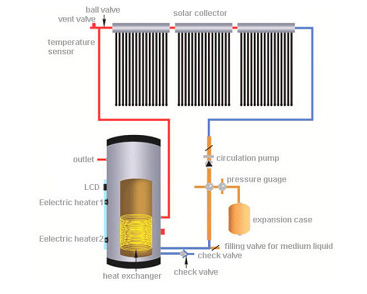

THE COMPOSITION OF THE SYSTEM

The heat pipe Vacuum tube collectors
The heat pipe vacuum tube collectors consisted of the Manifold, heat pipes, aluminium wings, all glass high efficiency vacuum tubes, outer casing and support frame. Which can pressure endured operation and collect the heat energy and transfer the heat energy.
Single coil pressure tank or Dual coil pressure tank.
The pressure tank consisted of the 1.2mm stainless steel inner tank, insulation ,outer tank and single coil or dual coil for the heat exchangerring.
Control system
The control system consisted of the computerized controller, pump, expansion tank and other part for the automatic operation.

WORKING THEORY

1. The solar collector collect the sun energy by the vacuum tube absorption and heat pipe conduction.
2. By he evaporation and liquidation process, the heat energy are conducted to the liquid passing the manifold , which take the heat energy away.
3.The control system control the heat energy conduction in the closed system, which realize the transition from the manifold to the tank heat exchanger.
4. The heat is transferred from the heat collector to the water tank by the heat exchanger
5.The circulation process is set in the fixed formula.
6.It’s not necessary for the circulation to work all the time..
7.The back up power such electric heater or gas heater or other power can work with the solar system too by the special control system instructed.
8. Coil heat exchanger realize the transition of the heat energy from the conducting from the conducting liquid to the water tank water
9. Then we got the tank hot water for the life..
