Wind turbine 2000W


Model: H3.8-2000W
Hummer 2000Wwind turbine can be applied in both on-grid and off-grid systems. The output is single phase AC power and it can drive a load below 2000W.

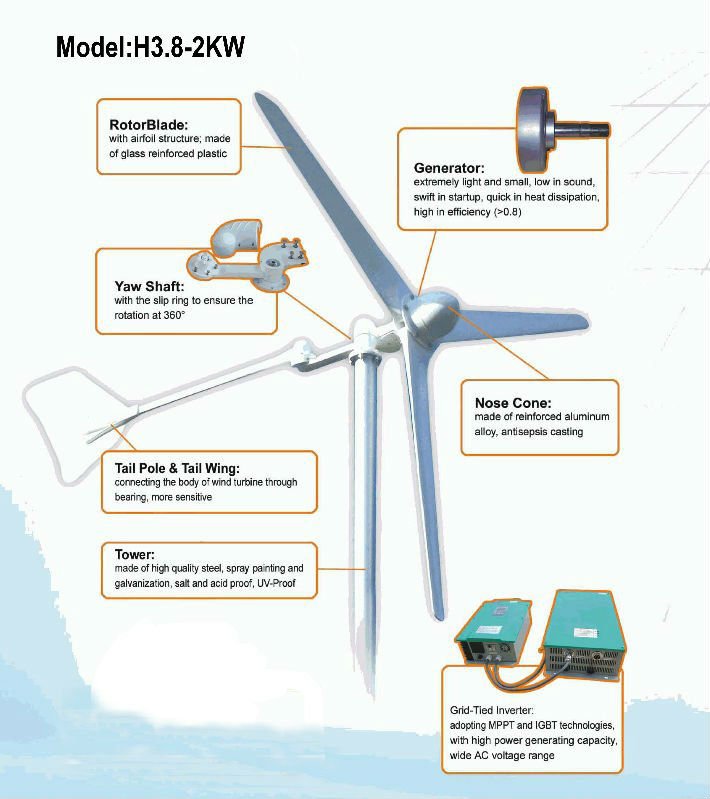

Features:

1. SCF Supercritical generator
Hummer’s wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator’s weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.



2. SKF bearings
Hummer wind turbine adopts two SKF (Svenska Kullager Fabriken) bearings which are produced by the largest bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. Ordinary bearings need to be changed every two or three years, while SKF bearings can greatly reduce the maintenance costs on this matter.


3. Low noise
The design of the rotor blade of Hummer wind turbine absorbs the highlights of the small aircraft’s airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.


4. Double braking protection
Hummer 2000W wind turbine adopts the double braking protection system, which are the yawing mechanism and the electromagnetic braking system to regulate the rotation of the wind turbine. It is safe and convenient to shut down the whole system both manually and automatically.

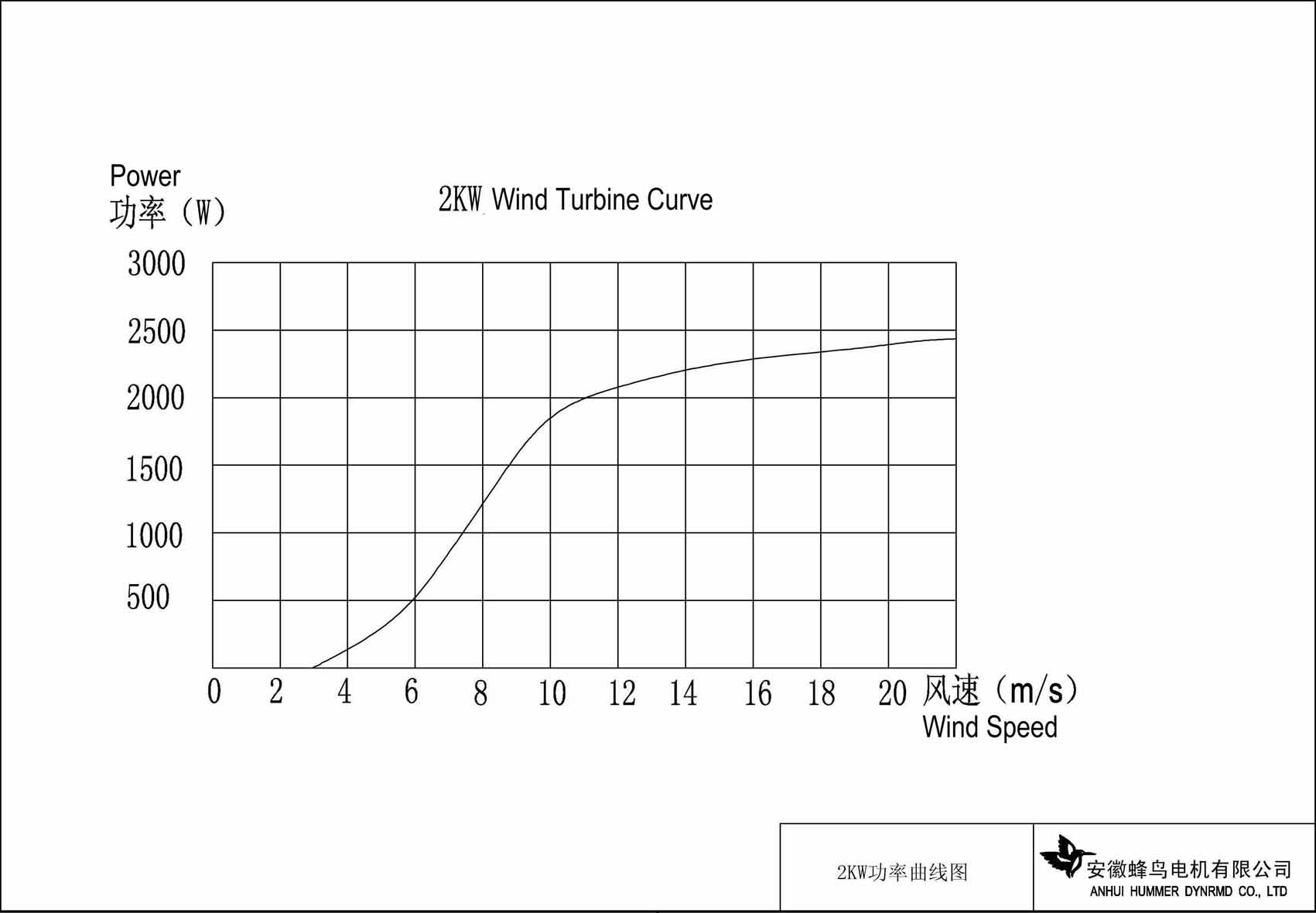

Specifications:
                                          Rated power (W)                                              2000
                                          Maximum output power (W)                              3200
                                          Battery bank voltage (Vdc)                               120
                                          Cut-in wind speed (m/s)                                    3
                                          Rated wind speed (m/s)                                    9
                                          Working wind speed (m/s)                                3-25
                                          Survival wind speed (m/s)                                 50
                                          Generator efficiency                                        >0.8
                                          Wind energy utilizing ratio (Cp)                         0.45
                                          Generator type                                                 Permanent Magnet Alternator
                                          Generator weight (kg)                                       25
                                          Blade material/quantity                                    GRP/3
                                          Blade diameter (m)                                          Ф3.8
                                          Speed regulation method                                 Yawing + Electromagnetic brake
                                          Shutting down method                                     Manual + Automatic







Additional Information

price:  $1 469 -
*Generating system
(FOB Shanghai).

price:  $2 759 -
* Generating system,
* Rectifier,
* PLC controller,
* Dumping load inverter,
* no Battery bank
(we suggest the customers to buy the battery bank in their local market
).
(FOB Shanghai).
