Wind turbine 500W

Model: H2.7-500W

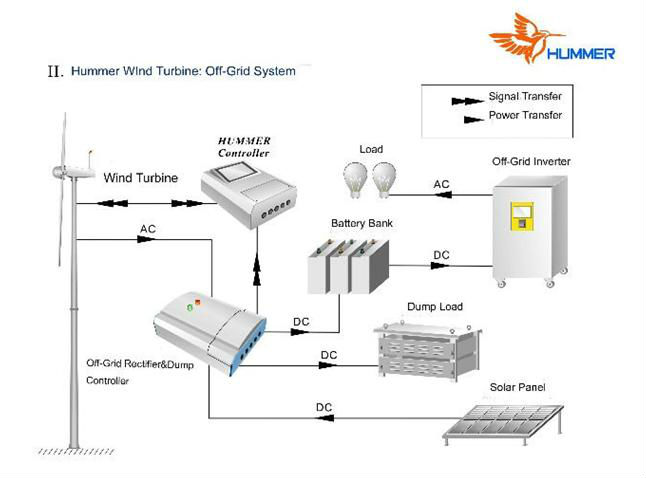

Hummer 500W wind turbine is designed for off-grid system which uses battery bank to store the power. It can drive resistive loads within 500W or 370W water pump etc inductive loads.

Features:

1. SCF Supercritical generator
Hummer wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator’s weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.



2. SKF bearings
Hummer wind turbine adopts two SKF (Svenska Kullager Fabriken) bearings which are produced by the largest bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. Ordinary bearings need to be changed every two or three years, while SKF bearings can greatly reduce the maintenance costs on this matter.


3. Low noise
The design of the rotor blade of Hummer wind turbine absorbs the highlights of the small aircraft’s airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.


4. Double braking protection
Hummer 500W wind turbine adopts double braking protection system, which are the yawing mechanism and electromagnetic braking system to regulate the rotation of the wind turbine. It is safe and convenient to shut down the whole system both manually and automatically.

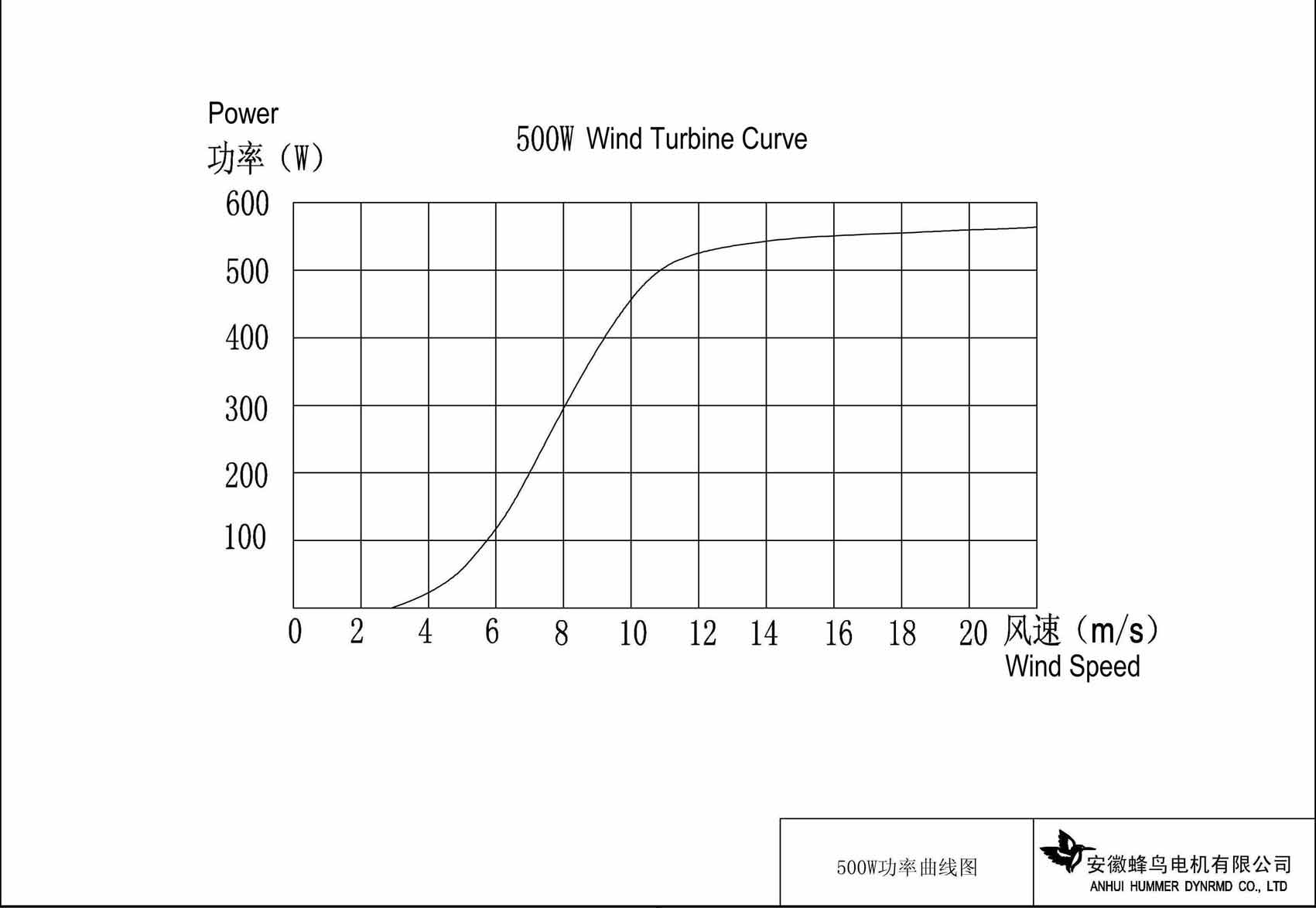

Specifications:
                                           Rated power (W)                                              500
                                           Maximum output power (W)                              1000
                                           Battery bank voltage (VDC)                               24
                                           Cut-in wind speed (m/s)                                    3
                                           Rated wind speed (m/s)                                    7
                                           Working wind speed (m/s)                                3-25
                                           Survival wind speed (m/s)                                 50
                                           Generator efficiency                                         >0.78
                                           Wind energy utilizing ratio (Cp)                         0.48
                                           Generator type                                                Permanent Magnet Alternator
                                           Generator weight (kg)                                       6.5
                                           Blade material/quantity                                    GRP/3
                                           Blade diameter (m)                                          Ф2.5
                                           Speed regulation method                                  Yawing + Electromagnetic brake
                                           Shutting down method                                      Manual + Automatic





Additional Information

price:  $469 -
*Generating system
(FOB Shanghai).

price:  $867 -
* Generating system,
* Rectifier,
* PLC controller,
* Dumping load inverter,
* no Battery bank
(we suggest the customers to buy the battery bank in their local market
).
(FOB Shanghai).




certificates:
